Support pedestals

With support pedestals, terrace installation is easier than ever.
Installation is possible on any type of base, on condition that it is stable and flat.
Support pedestals are suitable for use in areas exposed to direct outdoor conditions.

The base corrector allows the pedestals to be used even on slopes and to adjust the slope of the structure by up to 7% for the Standard series and up to 8% for the Max series.
The base corrector can be used simultaneously with the self-levelling head, which allows achieving a safe fall correction together up to 14% of the ground slope.

Spiral Series. Load capacity: 2204 lb

Spiral Series pedestals provide excellent support starting from only 0.66 in. while preserving all the advantages of ventilated terraces.
They are suitable for terrace installation where a minimum distance between the base and terrace deck is required.
The height can be adjusted from 0.66 in. to 1.18 in.

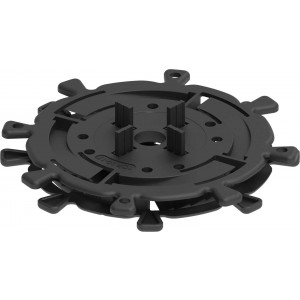

0.39 in. - 0.66 in.

Adjustable height
Load capacity: 2204 lb

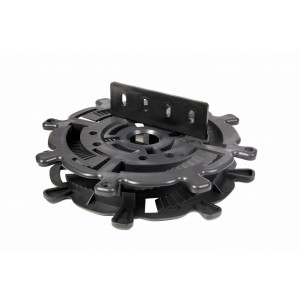

0.66 in. - 1.18 in.

Adjustable height
Load capacity : 2204 lb

Standard Series. Load capacity: 881 lb

Standard Series support pedestals are designed for simple projects where high load-bearing capacity is not required.
They are suitable for domestic terrace or balcony.
Height can be adjusted from 5.9 in. to 16.5 in.

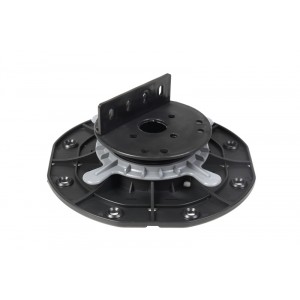

1.18 in. - 1.77 in.

Adjustable height
Load capacity: 881 lb

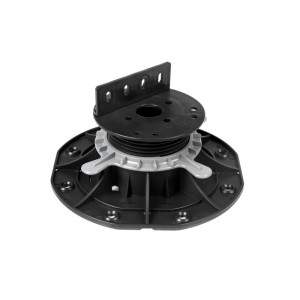

1.77 in. - 2.75 in.

Adjustable height
Load capacity: 881 lb

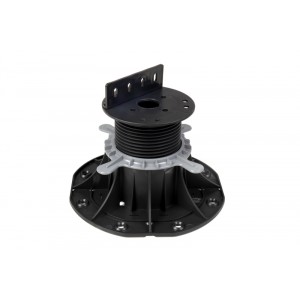

2.75 in. - 4.72 in.

Adjustable height
Load capacity: 881 lb

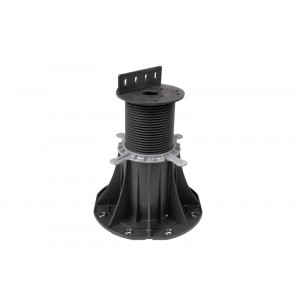

4.72 in. - 8.66 in.

Adjustable height
Load capacity: 881 lb

8.66 in. - 12.59 in.

Adjustable height

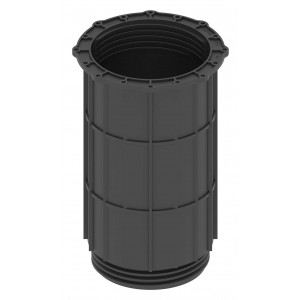

Support pedestal with a 3.93 in. height coupler.
Load capacity: 881 lb

12.59 in. - 16.53 in.

Adjustable height
Support pedestal with two 3.93 in. height couplers.
Load capacity: 881 lb

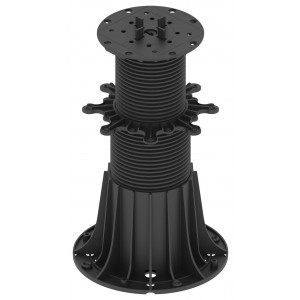

MAX Series. Load capacity 2645 lb

MAX Series support pedestals are designed for terraces that need to be raised and/or require additional load capacity.
They are suitable not only for backyard terraces but also for public areas.
The height can be adjusted from 1.18 in. to 37.4 in.
